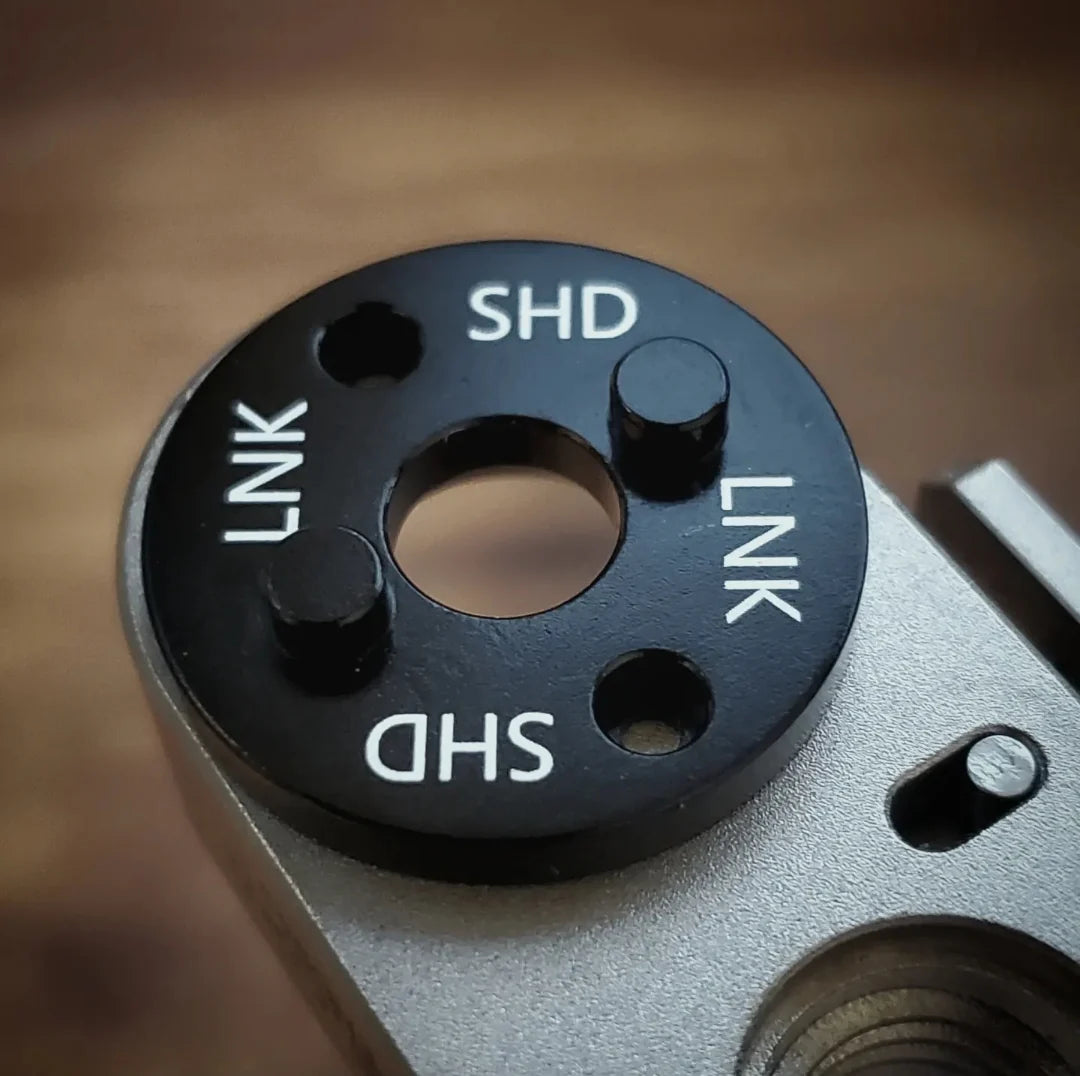

The LNKcine SHD-AT is a SmallHD anti-twist step-down for the LNK. It uses the ARRI anti-twist spacing M1.6 threads on the underside of the LNK to affix the SHD-AT and LNK together.
The SHD-AT is fully compatible with old pattern LNKs (2 ARRI anti-twist spaced threads on the underside) and new pattern LNKs (4 ARRI anti-twist spaced threads on the underside). Old and new pattern LNKs can utilise the SHD-AT with both 90° and 180° pin orientation.
Includes:
- 1x SHD-AT Anti-twist Attachment
- 1x 1/4-20 low-profile camera screw
- 2x M1.6 screws for mounting
Weight:
- Per SHD-AT without screws/hardware: 2g
Dimensions:
- Diameter: 21mm
- Total height including pins: 4.5mm
- Pin height: 2mm
Material:
