High Definition BNC Jack To Jack adaptor, 75OHM 3G HDTV
These high-performance, 75-ohm types, have been developed specifically for HDTV applications and have an extremely low return loss
True 75 Ω design meets the stringent HDTV / DVD requirements
“rearTWIST Principle” locking/unlocking
Excellent cable protection and retention
Guarantees a lifetime of min. 1000 mating cycles
Precise Swiss machined brass parts for outstanding durability
Fully compatible with conventional BNC chassis connectors
True 75 Ω design meets the stringent HDTV / DVD requirements
“rearTWIST Principle” locking/unlocking
Excellent cable protection and retention
Guarantees a lifetime of min. 1000 mating cycles
Precise Swiss machined brass parts for outstanding durability
75 ohm in-line female-female cable adapter compatible with 12G-SDI.
Featuring a Gold-plated beryllium-copper center contact for enhanced spring characteristics.
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6
Crimp size:Pin: 1.6 mm (square)Shield: 6.47 mm (hex)
Available in 3 ratings:
3 Amp - Appliances of up to 750 watts at 220-240AC
5 Amp - Appliances of up to 1000 watts at 220-240AC
13 Amp - Appliances of up to 3000 watts at 220-240AC
Sold in Blister Pack (4)
Conforms to BS1362
*if in doubt consult an electrician.
The NBNC75BFG7X is a RearTwist UHD BNC connector that is designed for high resolution video signal transmissions and features a low return loss value for both 4K / 8K signals due to its insulator and contact pin design.
Features:
Optimized contact pin and insulator design for UHD-data transmissions
Improved return loss values at high frequencies
75ohm
UHD BNC Coaxial Connector Type
RearTwist
Swiss antraloy plating
This 4 socket extension lead by Masterplug with a 2m cable and wall-fixing capability is designed to meet modern standards. Its shuttered sockets allow you to extend your power source safely preventing accidental contact ensuring a power solution that promises both safety and functionality.

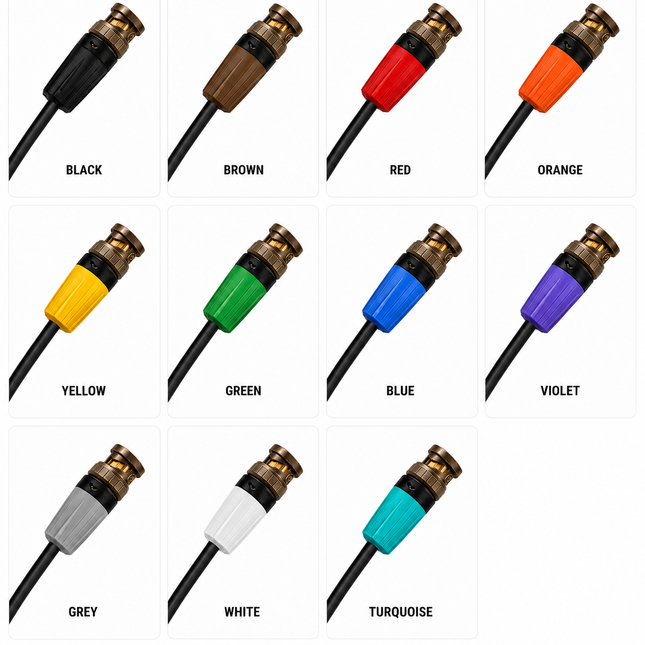

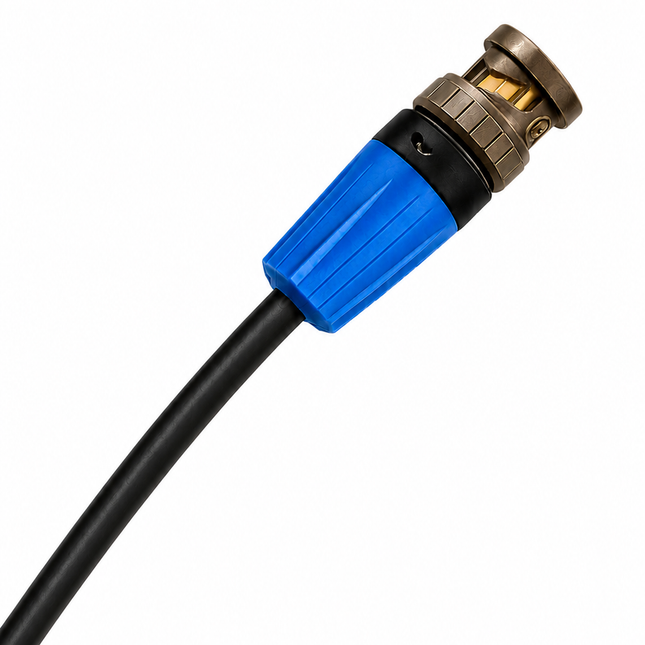

Engineered for professional broadcast, video, and RF applications, this high-performance 75Ω BNC cable assembly combines Belden 4855R precision coaxial cable with Neutrik NBNC75BDD6X rearTWIST UHD BNC connectors. Designed to support demanding SDI signal formats up to 12G-SDI, the assembly delivers exceptional signal integrity, low return loss, and reliable long-distance performance.
Belden 4855R features a precision gas-injected foam dielectric and bonded foil shield construction for superior impedance stability and excellent protection against EMI/RFI interference. Paired with Neutrik's industry-leading rearTWIST connector design, the assembly provides secure mating, robust strain relief, and dependable operation in high-density installations.
Ideal for broadcast facilities, live production, OB vehicles, post-production environments, and professional AV systems where uncompromising signal performance is essential.
Key Features:
Belden 4855R precision 75Ω broadcast coaxial cable
Neutrik NBNC75BDD6X rearTWIST UHD BNC connectors
Supports SD, HD, 3G, 6G, and 12G-SDI video formats
Excellent return loss and low signal attenuation
Superior shielding against EMI/RFI interference
Rugged construction for professional broadcast and AV applications
Precision-terminated and individually tested for performance
This 13AMP 4-Way Surge protected extension lead has 4 sockets and is 2 metres in length.
Protects computers and sensitive electronic equipment from being damaged by electrical surges and spikes
13 amp rated, This surge protected extension lead has 4 sockets and a 2 metre cable with power and surge indicator neon.
The three channel surge protection will activate during a power or mains surge, protecting your electrical items and is therefore ideal for home TV and audio equipment, power tools and portable devices.
This product has been designed to fully comply with the latest British standards and electrical equipment safety regulations
Suitable for use in the USA and ASIA.
Also suitable in countries operation a 110 volt system.
Suitable for small appliances and portable electrical equipment up to 1430W on the 110v system & up to 2990W on the 230v system.
13Amp Rated.
UK Visitor Travel Adaptor.
Conforms to BS 8546.
For use throughout the UK.
Compliant with British standards Travel essentials.
Preparation and Usage
Instructions
For use throughout the UK only.
Suitable for small appliances and portable electrical equipment rated up to 2000 Watts.
Please note that plugs should be attached to the adaptor before being inserted into the mains socket.
Use with both earthed (3 wires) and unearthed (2 wires) appliances.
Warnings
Warning
The adaptor does not convert voltage.
Ensure that the appliance is suitable for the local voltage supply.
For temporary use only.
Do not touch the plug pins when inserting or removing from the socket.
If you have any doubts consult a qualified electrician.
Please retain the information on this pack for future reference
Made in: PRC
